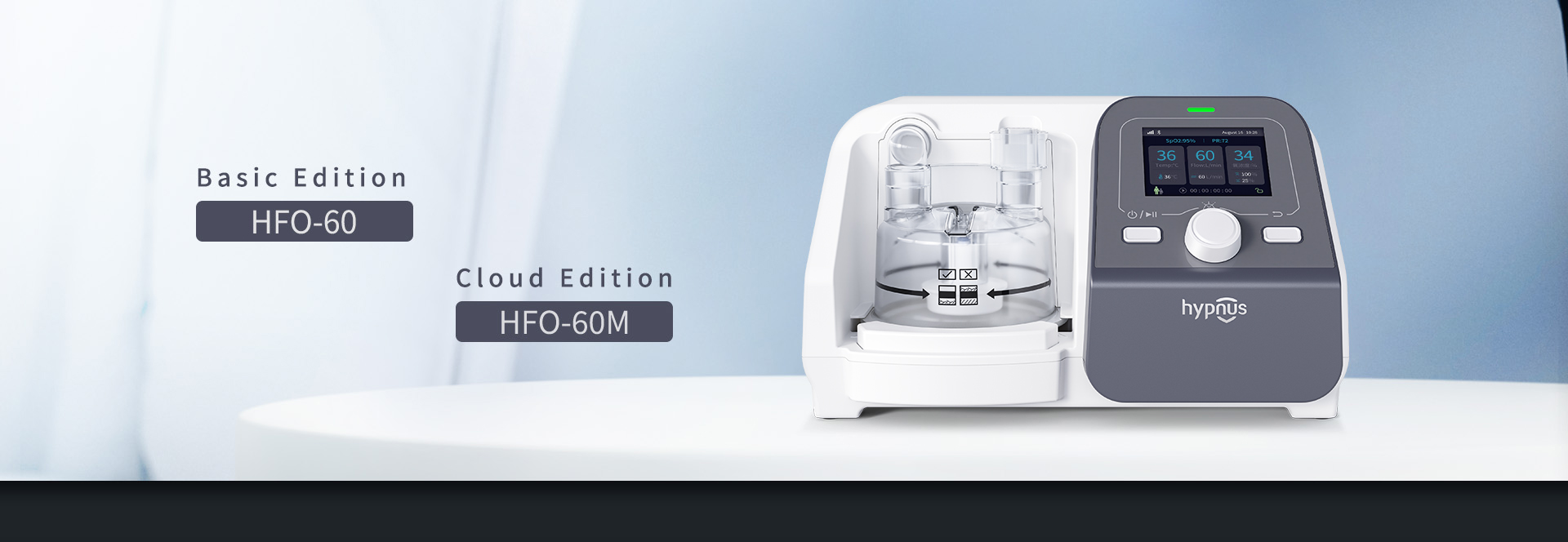

Hypnus High-Flow Nasal Cannula Oxygen Therapy Device
Can be used with oxygen sources such as oxygen concentrators, and has better physiological effects than ordinary oxygen therapy. It can not only correct hypoxemia, but also has certain ventilation effect and continuous positive airway pressure effect, which can relieve dyspnea, promote phlegm expulsion, effectively improve the quality of life of patients, and reduce the rate of acute episodes of hospitalization.
Physiological Effects
Telehealth Services
Respiratory Humidification Oxygen Therapy Escalation
Applicable Population
Product List
-
Hosts（1 set） -
Humidifier (1 set) -
Air filter (6 PCS) -
Heating Tube（1 PC） -
User Manual（1 copy） -
Certificate of conformity（1 copy） -
Warranty card （1 copy）
Easy installation
1
Press the lock button on the humidifier tank of the host
2
Push the humidifier tank into the host with the heat plate attached
3
Press the lock button of the humidifier tank again
4
Attaching the water bag to the humidifier tank
5
Install the breathing circuit to the humidifier outlet
6
Patient-side connection of an appropriate nasal cannula
Specifications
| Model | HFO-60 | HFO-60M | |||||
|
Flow range |
Junior mode:2-25L/min
Adult mode:10-60L/min
|
Junior mode:2-25L/min
Adult mode:10-60L/min
|
|||||
|
TemperatureOutput Range |
Junior mode: 31-34 Adult mode: 31-37 |
||||||
|
Adjustment accuracy: 1°C |
|||||||
|

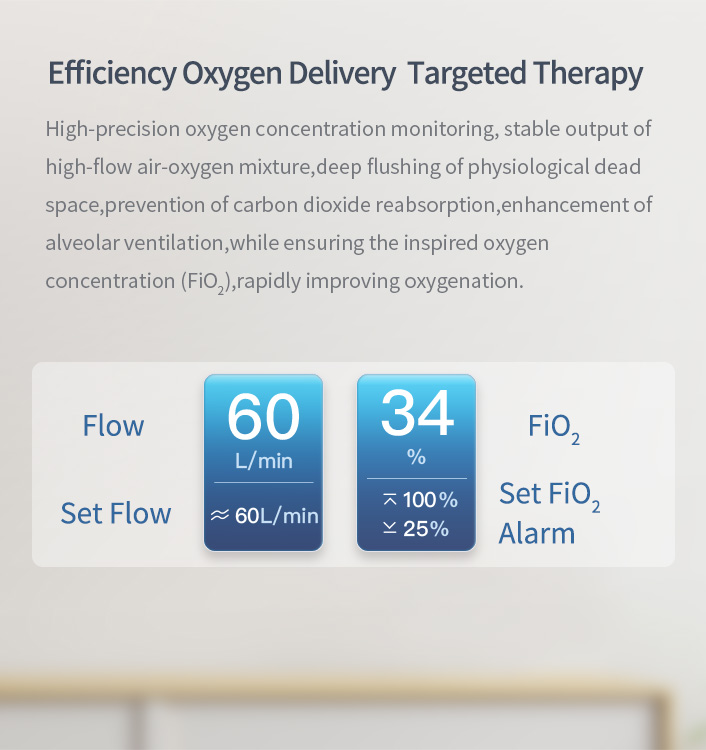

FiO2 monitoring range |
21% - 100% |
||||||
|
Adjustment Method of FiO2 |
Manual, External oxygen flow meter |
||||||
|
Humidity output |
>33mg/L at 37°C target; >12mg/L at 31-36°C | ||||||
|
Oxygen source pressure range |
200-550 kPa | ||||||
|
Preheating time
|
30min | ||||||
|
Maximum capacity of
water chamber (Auto-fill)
|
160±20 ml |
||||||
|

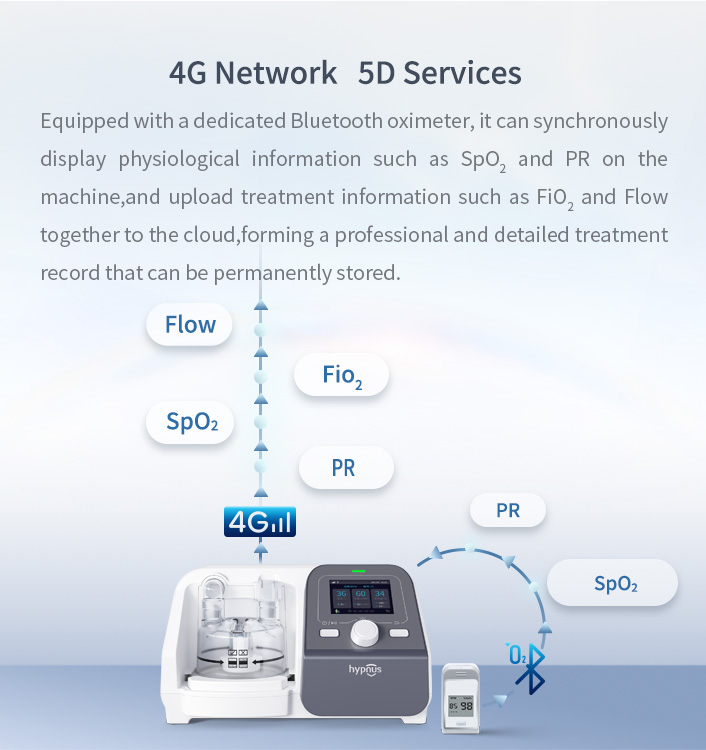

Bluetooth and wireless
communication module
|
N/A | Support | |||||
|

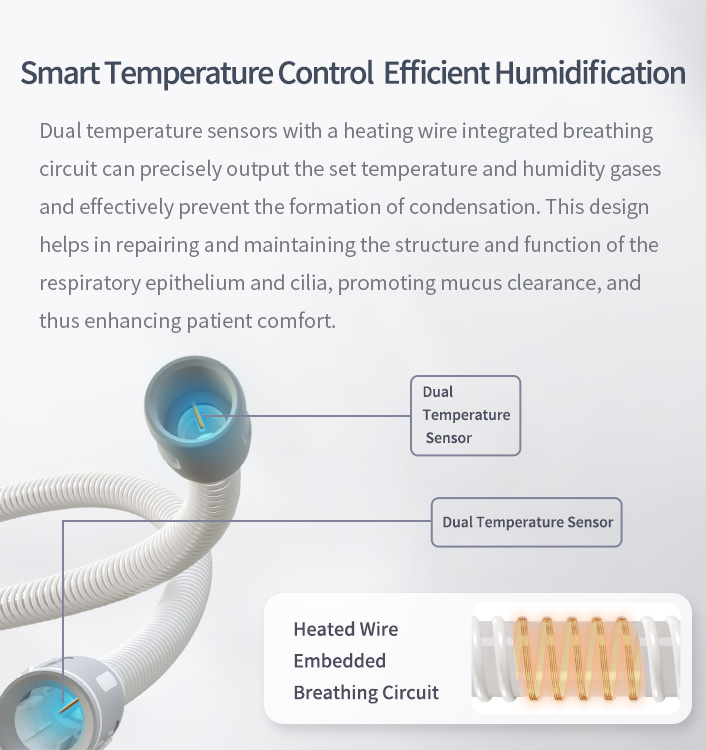

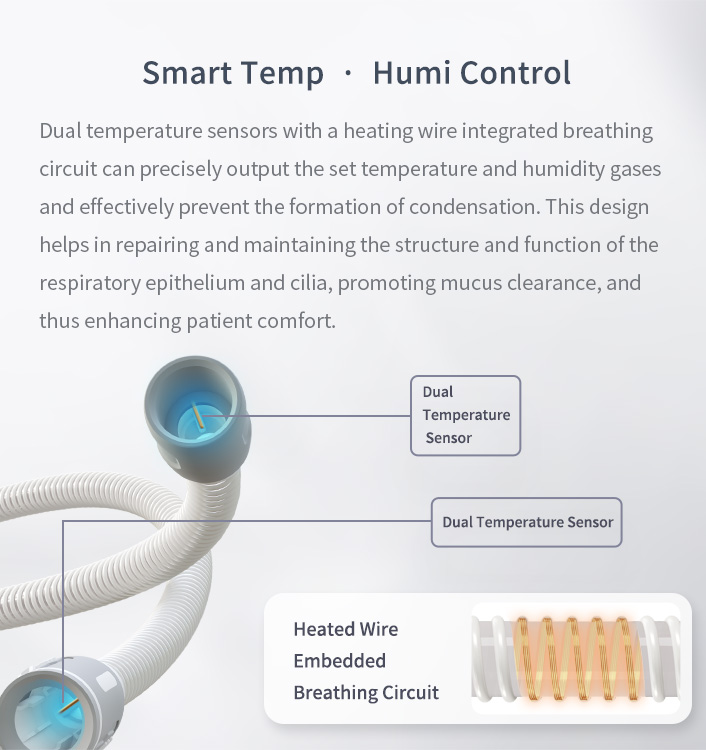

Heated breathing tube
|
Dual temperature sensors with heating wire integrated breathing tube; Length:
1.8±0.18m. |
||||||
|
Rated voltage and frequency
|
100-240V ~, 50 / 60Hz | ||||||
